Fiberglass Woven Roving

multiaxial fabric triaxial fiberglass cloth

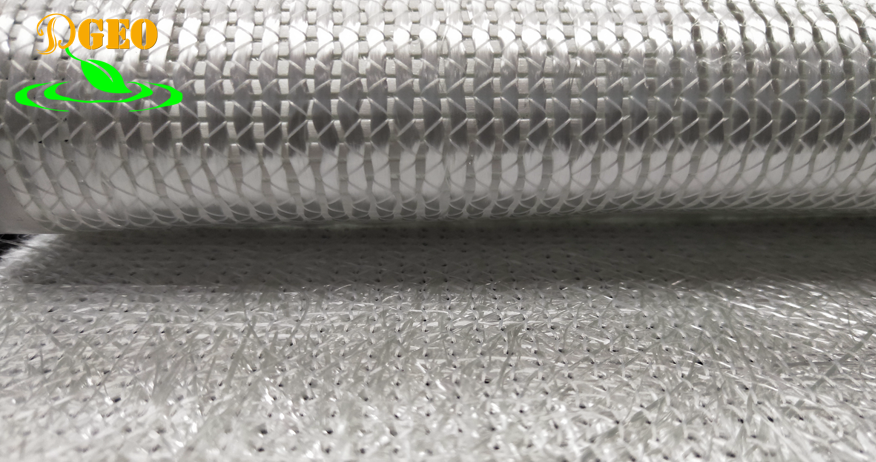

The multiaxial product is made with a glass direct roving parallel aligned in 0º,90º,+45º,-45º directions (also could be in any one or several of these directions, one direction one layer), then maybe stich together with or without a layer of evenly distribution chopped fiber. the product are extensively used in GRP pultrision process ,hand lay-up,and RTM process ect,. main product include GRP boats,automobile fitting and wind energy blades.

Advantages

1. Final product with high mechanical property in multi-layers, and could free design the reinfrocing effect in each direction to meet actual needs

2. The multi-layers structure could simplify the forming process, improve operation efficiency

3. Quickly wet-out, good moulding property and easily delete air bubbles

product parameter

Specs	0º(g/m2)	90º(g/m2)	+45º(g/m2)	-45º(g/m2)	Mat(g/m2)	Total Weight(g/m2)
EMF400 /800 (0º, 90º)	400	400			400	1200
EMF1200(0º, +45º, -45º)	400		400	400		1200
EMF800(0º, 90º, +45º, -45º)	200	200	200	200		800
EMF450/800(0º, 90º, +45º, -45º)	200	200	200	200	450	1250

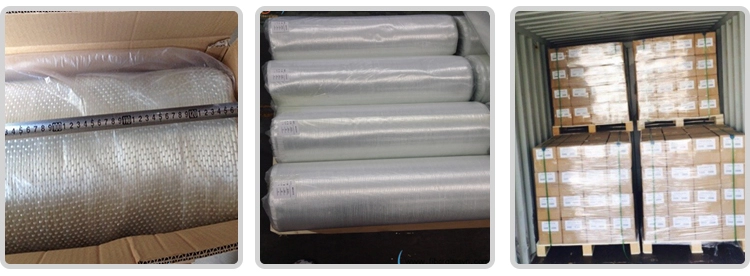

Packaging & Shipping

multiaxial fabric could be producted into different widths, each rolll is wound on a cardboard tube with inner diameter 76mm or 100mm, then put into a polyethylene bag, and fastened the entrance ,then packed into a suitable cardboard box. this product can be shopped either with cardboard box only or with palllet. in the pallet packing, the product could be horizontally on the pallet and fastened with packed straps and shrink film.

Applications
